PFAFF creative™ 3.0
The PFAFF creative™ 3.0 is a computerised sewing and embroidery machine with 254 stitches, 157 embroidery designs and an embroidery area of up to 260 × 200 mm.
The machine suits those who want to sew and embroider, learn new things and create in their own style. It sews without a foot control, trims threads automatically and embroiders mirrored stitches, and embroidery designs can be edited on a computer.
Switching from sewing to embroidery is quick – preparing the machine for embroidery takes a few minutes.
Features
IDT™ fabric feed system
The integrated top feed system, developed by PFAFF engineers 45 years ago, has remained essentially unchanged to this day. The top feed works in sync with the lower feed dogs, so the fabric is fed evenly whatever you are sewing.
.jpg)
How the IDT™ system works
A special system additionally feeds the fabric from above, so the layers do not shift and the seam comes out even.
Embroidery area up to 260 × 200 mm
The large embroidery area lets you embroider large designs on clothing, cushions, throws and other items.
Colour touch screen
The clear high-resolution screen shows stitches in actual size and embroidery designs in true colours. The menu layout is simple and easy to understand.
Quick switch to embroidery
Switching from sewing to embroidery is quick and easy – preparing the machine for embroidery takes a few minutes.
Designs, fonts and memory
The machine's memory holds 157 embroidery designs and 2 embroidery fonts, each in three sizes. There is also room to save your own creations.
Combining designs on screen
Several embroidery designs can be combined directly on the machine's screen.

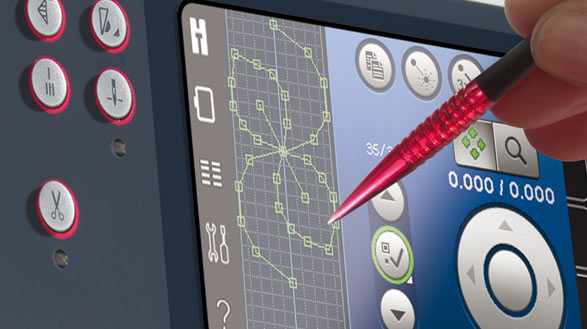

Stitch Creator™ feature
You can create new stitches up to 9 mm wide or edit the stitches built into the machine.
Embroidery Intro software
Embroidery Intro software is included, letting you edit, combine and personalise embroidery designs.
20 cm work area and stitch guide
The work area to the right of the needle is up to 20 cm, making it easy to sew and decorate large items and to do free-motion embroidery and quilting.
The stitch guide is on the inside of the hinged top cover – you do not need to look through the manual when choosing a stitch.
Bright three-zone LED lighting
New-generation LED lighting in three places illuminates the work area well when sewing and embroidering. The control buttons and touch screen are clearly laid out, so you can make settings quickly.
Fabrics it sews
- Very light
- Light
- Medium and medium-heavy
- Heavy
- Knits
- Thin leather, leatherette, upholstery fabrics
Specifications
| Number of stitches | 254 |
|---|---|
| Maximum embroidery area | 260 × 200 mm |
| Maximum stitch width | 7 mm |
| Maximum stitch length | 6 mm |
| Buttonhole types | 7 |
| Alphabets | 2 + 2 embroidery alphabets |
| Work area | 20 cm |
| Removable free arm length / circumference | 8 / 29.8 cm |
| Feed dog width | 17 mm |
| Presser foot lift (normal / maximum) | 6 / 12 mm |
| LCD screen | 71.5 × 34.5 mm |
| Memory | 1 cell of 60 characters |
| Computer connection | USB port |
| Power consumption | 55 W |
| Needle type | 130/705H |
| Weight with packaging | 17 kg |
| Country of manufacture | Germany |
| Country of assembly | Taiwan |
| Warranty | 3 years |
Other features
- Software for editing design size, position, text and shape
- Horizontal full rotary hook
- IDT™ top feed system (Integrated Dual Transporter)
- Electronic needle piercing power stabiliser
- Sewing speed control on the housing
- Needle up / down position
- Needle threading system
- Automatic thread trimming
- Presser foot pressure dial
- Three-zone LED lighting
- Automatic stop when winding the bobbin
- Ruler on the machine housing
- Hard machine case
- The LCD screen shows the selected stitch, stitch length and width, recommended thread tension and presser foot
- Stitch guide
- Mirror embroidery of stitches in two directions
- START/STOP – sewing without a foot control
What's included
- Foot control
- Power cord
- Hard machine case
- MASTER HOOP embroidery hoop (260 × 200 mm)
- 0A – standard foot for IDT™
- 1A – decorative stitch foot for IDT™
- 2A – clear embroidery foot
- 3 – blind hem foot for IDT™
- 4 – zipper foot for IDT™
- 5 – automatic buttonhole foot
- 5M – standard buttonhole foot
- 6 – embroidery, free-motion and quilting foot
- Thread net
- Edge guide
- Spool pin felts, 2 pcs
- Screwdriver
- Auxiliary spool pin
- Seam ripper
- Machine cleaning brush
- Bobbins, 5 pcs
- Needle plate screwdriver
- Small spool cap
- Large spool cap
- Needles
- USB stick with PFAFF® creative™ 3.0 embroidery designs and a brochure
- Multi-purpose tool
- Long needle clamp screw
Optional extras
Extension tableFurther enlarges the machine's work area.55 €
Thread standFor spools of any size, including industrial threads.35 €
